How to connect the bitShake SmartMeterReader-Air?
Ensure that the latest firmware update has been installed on your bitShake SmartMeter!

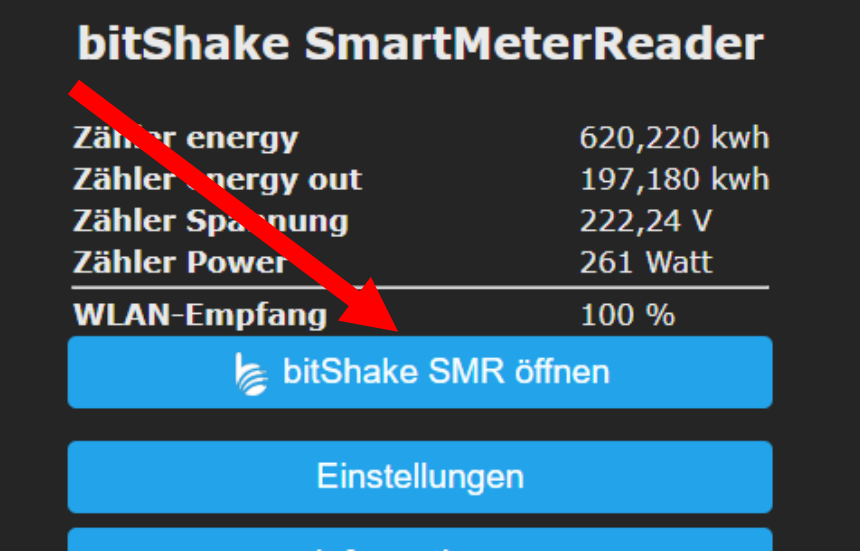

1. In the bitShake SMR reading head interface, click the “bitShake SMR öffnen” button.

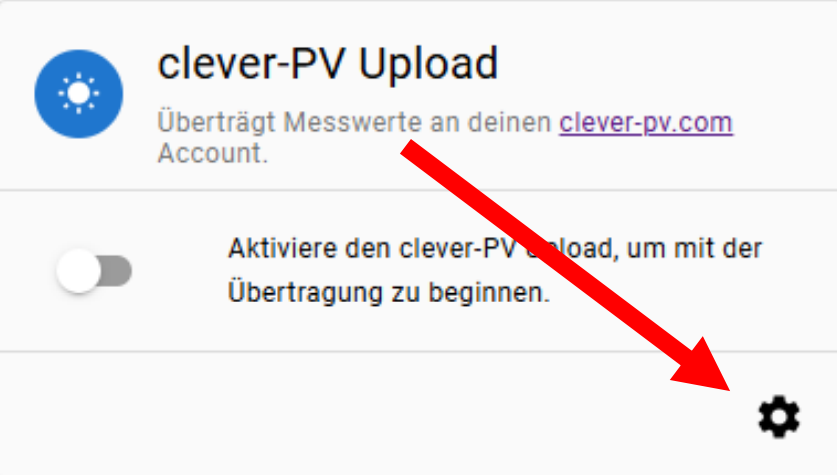

2. In the “clever-PV Upload” section, click the gear icon in the bottom right corner.

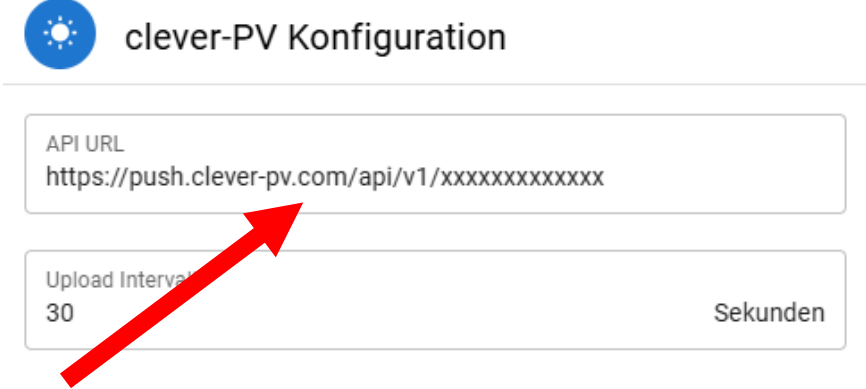

3. Enter the API URL from our app.

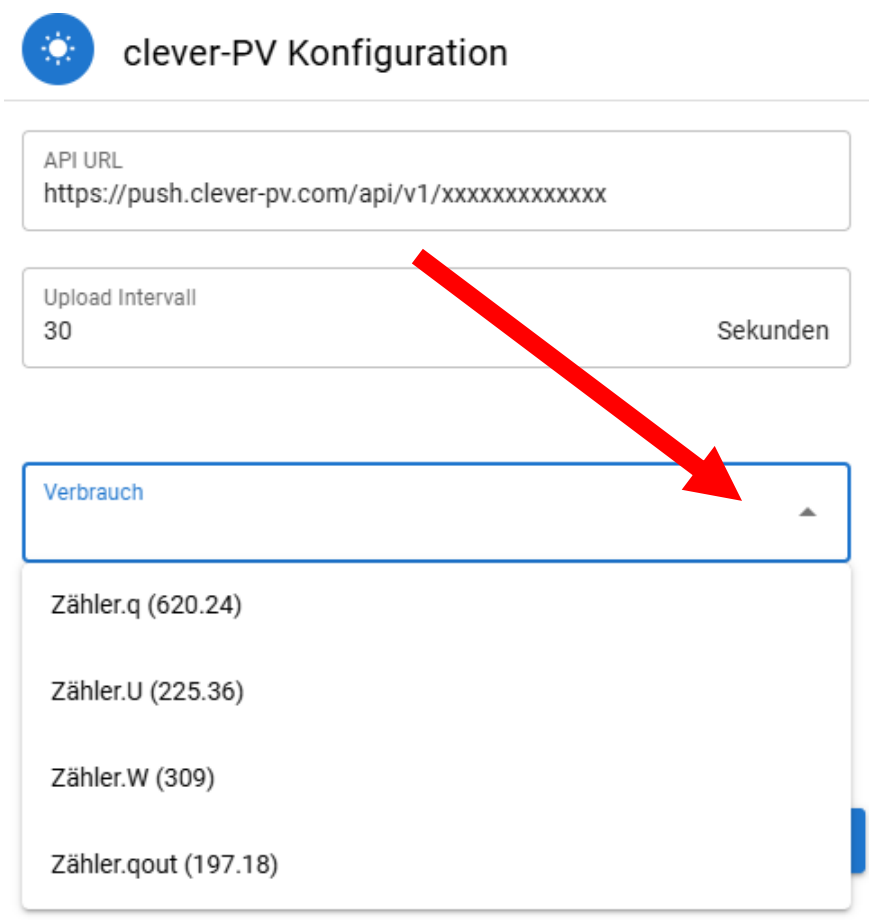

4. Select the appropriate values for consumption, grid feed-in, and current power.
5. Click Save.

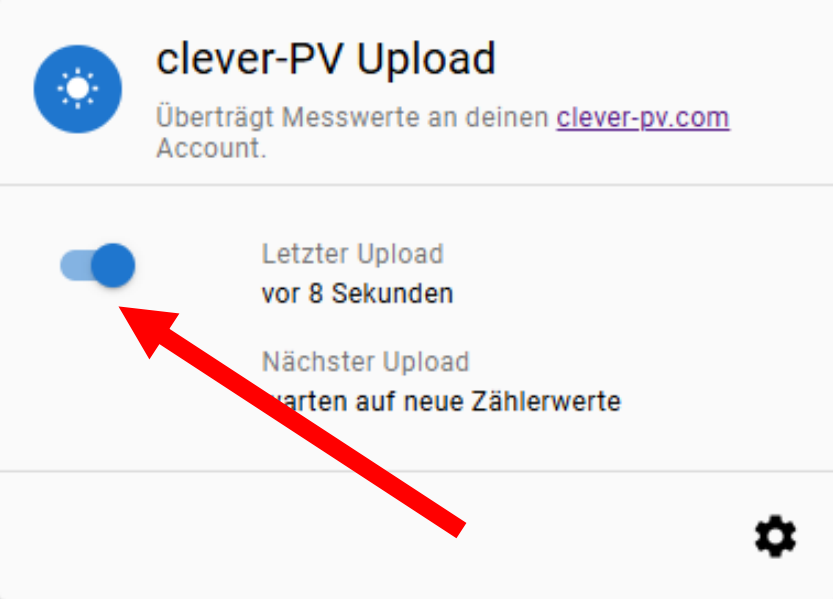

6. Activate the upload using the blue toggle switch
Are you still experiencing issues during setup?
Please feel free to contact bitShake directly: mailto:SMR-support@bitshake.de
